Understanding Memory Constraints in LLM Inference: Key Strategies

When people talk about large language models, the conversation usually starts with parameters, benchmarks, and model quality.

But in production, inference often comes down to something much more physical:

memory capacity + memory bandwidth + how intelligently we move data through the system.

That is the real constraint.

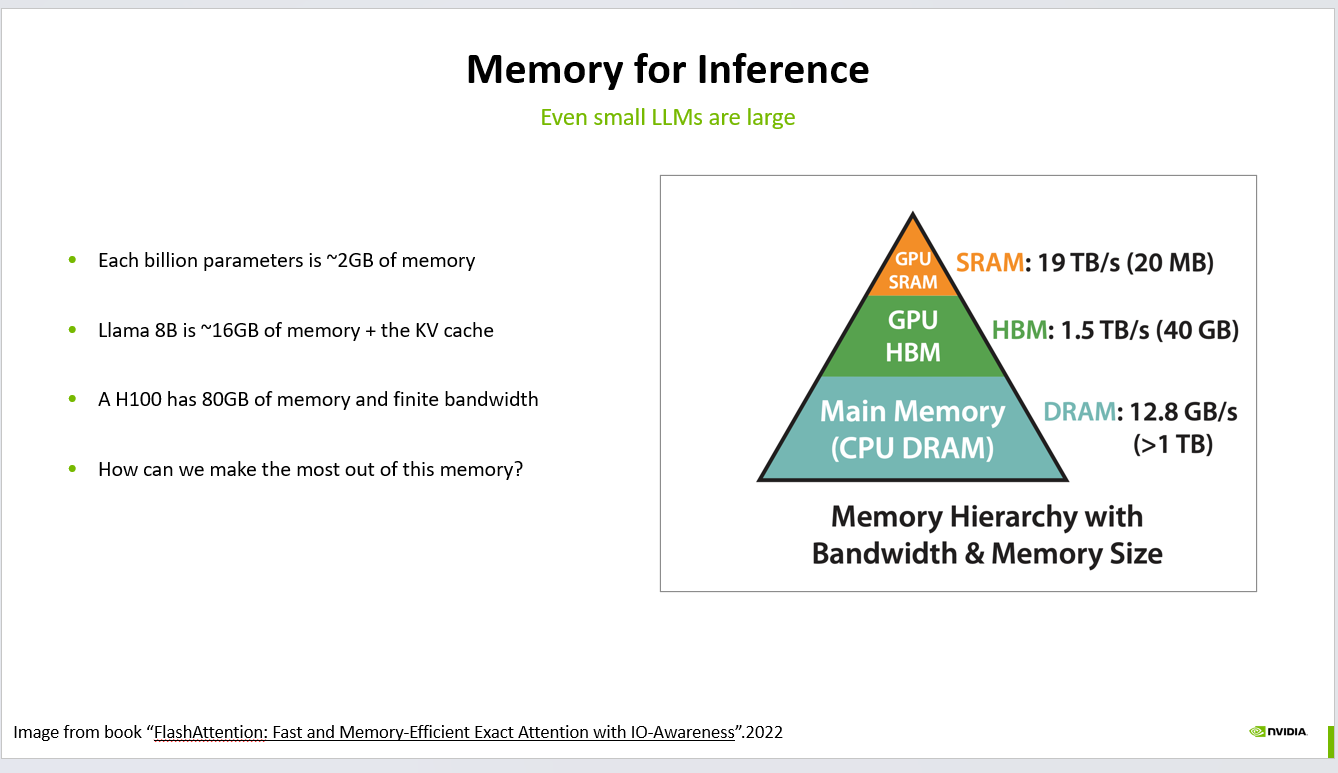

The slide above captures this well. Even “small” LLMs are large when you think about the memory they require and the bandwidth needed to serve them efficiently.

A simple way to think about it

A rough mental model many engineers use is:

• ~2 GB of memory per 1B parameters for FP16-style weights

• So an 8B model is already ~16 GB just for parameters

• Then add the KV cache, runtime buffers, activations, batching overhead, framework overhead, and fragmentation

Suddenly, a model that sounds modest on paper becomes very real infrastructure.

That is why even with an H100 and 80 GB of memory, the problem is not “solved.” You still have limited capacity, and more importantly, finite bandwidth.

The hierarchy matters more than most people realize

Not all memory is equal.

There is a huge gap between:

• On-chip SRAM: extremely fast, very small

• HBM on the GPU: very fast, much larger, still limited

• CPU DRAM: much larger, but dramatically slower from the model’s perspective

This creates the core challenge of LLM inference:

How do we keep the GPU fed without constantly stalling on memory movement?

In many inference workloads, we are not purely compute-bound. We are memory-bandwidth-bound or data-movement-bound.

That changes how we should think about optimization.

What this means in practice

If memory is the bottleneck, then improving inference is not only about faster kernels or bigger GPUs.

It is about making the most out of available memory.

That includes:

1. Reducing model footprint

Quantization is often the first lever.

Moving from FP16 to INT8, 4-bit, or other compressed formats can dramatically reduce memory pressure and increase the number of models or requests you can serve per device.

The tradeoff is accuracy, calibration complexity, and sometimes serving complexity. But in many real-world systems, these tradeoffs are worth it.

2. Managing the KV cache carefully

For long-context and multi-user systems, the KV cache becomes a first-class infrastructure concern.

Weights are only part of the story. As sequence length and concurrency rise, KV cache growth can dominate memory usage.

That means teams need to think about:

• cache reuse

• eviction policies

• prefix caching

• paged attention strategies

• context-window discipline

In practice, this is often where major throughput wins come from.

3. Optimizing data movement, not just math

A lot of system performance is won by reducing reads and writes to slower levels of memory.

This is exactly why work like FlashAttention was so important: it reframed attention not just as a mathematical operation, but as an IO-aware systems problem.

That mindset applies more broadly to inference architecture:

• fuse operations where possible

• avoid unnecessary copies

• keep hot data close to compute

• batch intelligently

• design for locality

4. Treating batching as a memory strategy

Batching is not just about throughput. It is also about how effectively you utilize memory bandwidth.

The right batching strategy can improve device utilization significantly. The wrong one can blow up latency, fragment memory, and create unstable serving behavior.

This is why production inference systems increasingly rely on:

• continuous batching

• dynamic scheduling

• token-level admission control

  Still reading? Stop comparing — try CallSphere live.

  CallSphere ships complete AI voice agents per industry — 14 tools for healthcare, 10 agents for real estate, 4 specialists for salons. See how it actually handles a call before you book a demo.

  Try Live Demo → Book 30-min Walkthrough See Pricing

• workload-aware routing

5. Designing for the full serving stack

Inference performance is shaped by more than the model kernel.

It also depends on:

• request patterns

• prompt lengths

• concurrency distribution

• hardware topology

• model placement

• CPU ↔ GPU transfer behavior

• orchestration choices

The best teams do not optimize one layer in isolation. They optimize the entire memory path.

The key mindset shift

We often ask:

How big is the model?

A better production question is:

How much memory does this workload consume over time, and how fast can the system move that memory where it needs to go?

That framing leads to better engineering decisions.

Because scaling inference is not only about fitting weights into VRAM.

It is about balancing:

• model size

• context length

• concurrency

• latency targets

• bandwidth limits

• cost per token

Final thought

As LLM applications mature, memory is becoming one of the central design constraints in AI systems.

Not just memory capacity.

Memory hierarchy. Memory bandwidth. Memory movement.

The teams that win on inference efficiency will be the ones that treat serving as a systems problem, not just a model problem.

That is where a lot of the next wave of performance gains will come from.

Curious how others are thinking about this tradeoff in production:

Are you hitting compute limits, memory capacity limits, or memory bandwidth limits first?
